Die Design
Die Design Services for Precision Manufacturing & High-Performance Tooling
At Check-Mate Industries, our die design capabilities are built around precision engineering, manufacturability, and long-term production efficiency. We design high-performance dies that support accurate, repeatable manufacturing for industries where quality, consistency, and durability are essential.
From simple blanking dies to highly complex progressive and forming dies, our engineering team develops custom tooling solutions engineered to optimize production speed, maintain tight tolerances, and maximize tool life across both low- and high-volume manufacturing programs.
Precision die design. Engineered for production performance. Built in the USA.
Precision Die Design for Complex Manufacturing Applications
Our die design services focus on creating tooling systems that deliver consistent, high-quality production results in real-world manufacturing environments. Every die is engineered with precision, durability, and manufacturability in mind to ensure reliable performance over long production cycles.
We specialize in designing tooling solutions that support complex geometries, tight tolerances, and high-efficiency production requirements. This includes optimizing part flow, reducing wear, and improving cycle efficiency across stamping and forming operations.
The result is tooling that not only performs at launch but continues to deliver consistent output over time.

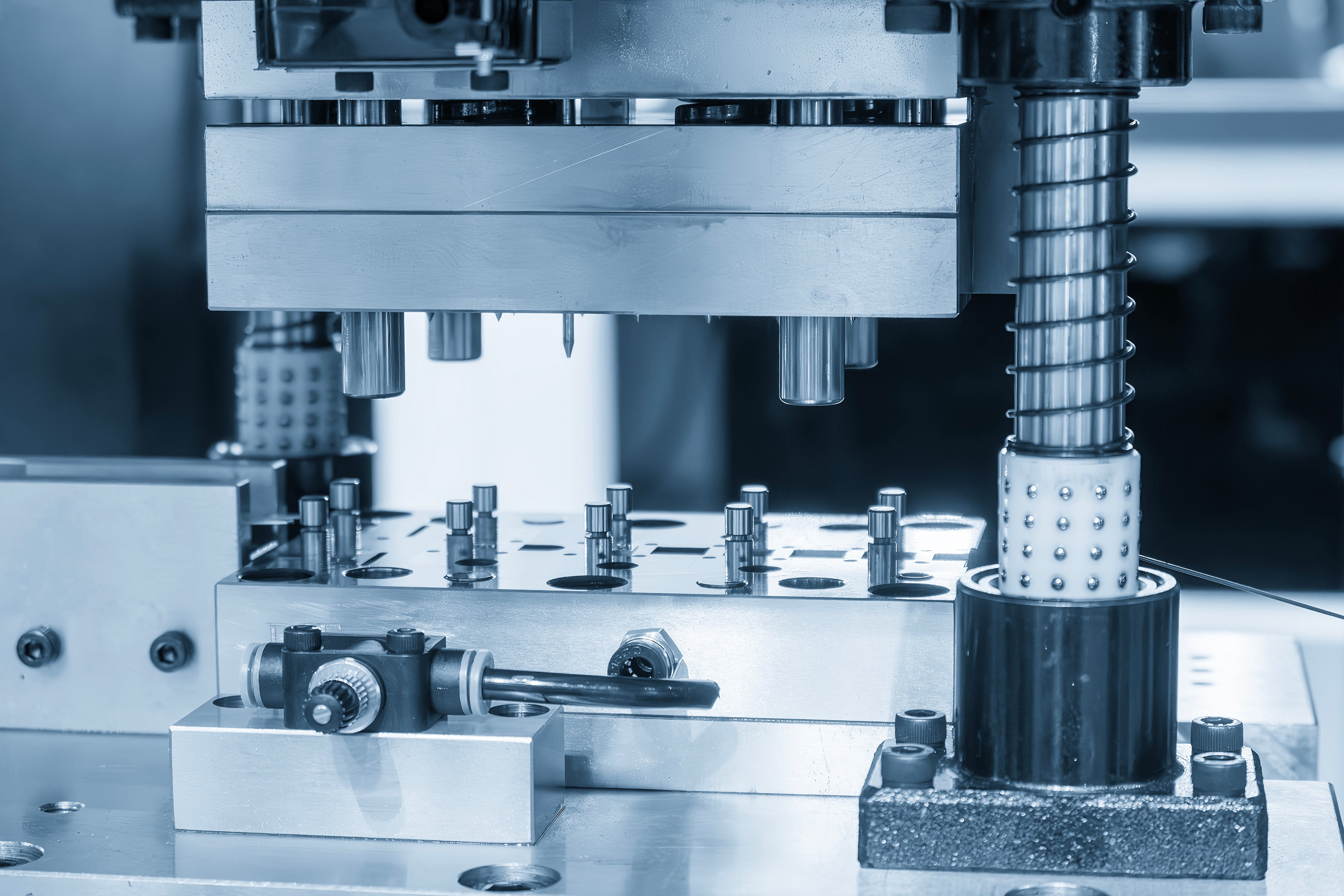

Fully In-House Die Design & Engineering Control
One of the key advantages of working with Check-Mate Industries is our fully in-house die design and tooling development process. Every stage of engineering, design, and manufacturing is handled internally, giving us complete control over quality, cost, and production timelines.
Our engineering team works directly with customers to evaluate part geometry, material selection, and manufacturing requirements before developing a tailored die design strategy.
This collaborative approach improves manufacturability, reduces production risks, and ensures a smooth transition from prototype development into full-scale production.
By eliminating outside dependencies, we deliver faster turnaround times, improved communication, and greater consistency across every project.
Advanced Die Types & Engineering Capabilities
Check-Mate Industries has extensive experience designing a wide range of precision dies and tooling systems for demanding applications.
Our capabilities include blanking dies, compound dies, carbide dies, forming dies, deep draw tooling, progressive dies, and large or small Class “A” dies. Each system is engineered for dimensional accuracy, material efficiency, and long-term durability.
We carefully design every die to account for material flow, wear resistance, and production stability, ensuring consistent performance across extended manufacturing runs.
Built for High-Performance Manufacturing Industries
Our die design services support industries where precision tooling directly impacts product quality, safety, and production efficiency.
We regularly serve:
- Aerospace manufacturers requiring tight-tolerance tooling systems
- Automotive suppliers with high-volume stamping requirements
- Firearms and defense applications requiring durable, repeatable dies
- Medical device manufacturers requiring precision forming systems
- Industrial and consumer product companies needing scalable production tooling
In these industries, tooling design is a critical factor in overall manufacturing success.
Material Expertise for Demanding Applications
Check-Mate Industries designs and builds dies for a wide range of metals and high-performance materials, including stainless steel, aluminum, brass, copper, spring steel, titanium, and exotic alloys.
Each material presents unique challenges related to flow, springback, wear, and forming behavior. Our engineering team accounts for these variables during the die design process to ensure consistent, high-quality production results.
This expertise allows us to support even the most complex and demanding manufacturing programs with confidence.
Complete Manufacturing Integration from Design to Production
What sets Check-Mate Industries apart is our ability to integrate die design directly with tooling manufacturing, metal stamping, CNC machining, and assembly operations.
This vertical integration allows us to move seamlessly from concept to production without delays or quality loss between stages.
By controlling the entire process in-house, we reduce lead times, improve production efficiency, and ensure consistent part quality across every phase of manufacturing.
Why Choose Check-Mate Die Design Services
Choosing Check-Mate Industries means partnering with a manufacturer that understands the full lifecycle of tooling and production systems.
Our die design services deliver:
- High-precision engineering and tooling design
- Optimized manufacturability and production efficiency
- Full in-house design and manufacturing control
- Faster development cycles and reduced lead times
- Long-term durability and consistent production performance
We don’t just design dies—we design production systems built for long-term success.
Start Your Die Design Project Today
If you need expert die design services for stamping, forming, or precision manufacturing applications, our engineering team is ready to help.
From initial concept through full production tooling, Check-Mate Industries delivers precision, efficiency, and reliability you can depend on.
